Product Overview
The Hydraulic Vertical Mast Lifts and driveable vertical lifts are compact and lightweight machines that increase productivity on the job by fitting through narrow aisles and in most passenger elevators. They have a maximum working height of 5.6m and loading capacity of 227kg.
Product Features
The mobile mast lifts can be driven through doorways with the operator on board, have a zero inside turning radius, full elevation drive feature, and run smoothly and efficiently thanks to sophisticated manufacturing equipment.
Product Value
The company never uses recycled wasted material to maintain the quality of their aerial working platforms. They have a strict quality control system in place and professional sales and after-sales teams available.
Product Advantages
The quality of the product is considered one of the best due to the strict quality control system in place. The company's strong manufacturing capabilities fuel innovation in aerial working platform design.
Application Scenarios
The aerial working platforms developed by the company can be widely used in various fields and can be customized to provide comprehensive and efficient solutions for different customer needs.

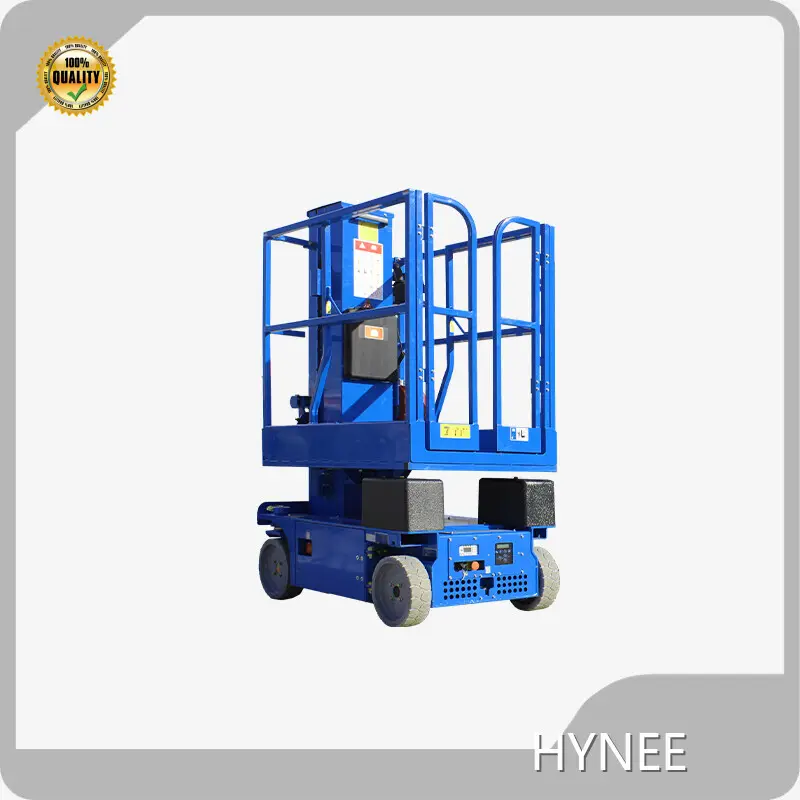

The Hyneelift AMWP4.8-6100 self propelled vertical boom lifts provide superior maneuverability. When operating driveable vertical mast lifts in tight work spaces, a high degree steer angle allows for superior functionality and flexibility by offering zero inside turning radius.
| Model | AMWP4.8-6100 |
| Max. Working Height | 6.8m |
| Max. Platform Height | 4.8m |
| Loading Capacity | 227kg |
| Ext. Platform Capacity | 114kg |
| Overall Length | 1.36m |
| Overall Width | 0.76m |
| Overall Height | 1.98m |
| Platform Dimension | 1.28m×0.70m |
| Ext. Platform Length | 0.51m |
| Wheel Base | 1.04m |
| Inner Turning Radius | 0m |
| Outer Turning Radius | 1.4m |
| Travel Speed(Stowed) | 4km/h |
| Travel Speed(Raised) | 1.1km/h |
| Up/Down Speed | 41.5/42sec |
| Gradeability | 25% |
| Drive Tyres | Φ305×100mm |
| Drive Motors | 2×24VDC/0.5kW |
| Lifting Motor | 24VDC/1.2kW |
| Battery | 2×12V/100Ah |
| Charger | 24V/15A |
| Weight | 980kg |
The Hyneelift AMWP6-6100 electric vertical mast lift has full electric drive, and a wind rating. The AMWP6-6100 is driveable at full working height and has 25% gradeability and torque with unmatched consistency. This machine offers fully proportional lift controls and drive, and it requires minimal maintenance on wheel motors.
| Model | AMWP6-6100 |
| Max. Working Height | 8m |
| Max. Platform Height | 6m |
| Loading Capacity | 159kg |
| Ext. Platform Capacity | 114kg |
| Overall Length | 1.36m |
| Overall Width | 0.81m |
| Overall Height | 1.98m |
| Platform Dimension | 1.28m×0.70m |
| Ext. Platform Length | 0.51m |
| Wheel Base | 1.04m |
| Inner Turning Radius | 0m |
| Outer Turning Radius | 1.4m |
| Travel Speed(Stowed) | 4km/h |
| Travel Speed(Raised) | 1.1km/h |
| Up/Down Speed | 52/53sec |
| Gradeability | 25% |
| Drive Tyres | Φ305×100mm |
| Drive Motors | 2×24VDC/0.5kW |
| Lifting Motor | 24VDC/1.2kW |
| Battery | 2×12V/100Ah |
| Charger | 24V/15A |
| Weight | 1060kg |
