HYNEE Vertical Lifts Price List

Inquiry

Product Overview

- HYNEE Vertical Lifts Price List

- Produced by HYNEE INDUSTRIES PTE. LTD

- Model range includes GTWY1-5, GTWY1-6, GTWY1-8, GTWY1-9, GTWY1-10, GTWY1-12

Product Features

- Emergency lowering function to platform control

- Die-cast aluminum foot cup with plastic wrapping

- Oil collection box to prevent leakage

- TPU casters, platform cushion structure, self-leveling chain

- Chain inspection hole for regular maintenance

Product Value

- High quality vertical lifts with stability and safety features

- Different model options to suit various needs and applications

- Advanced production technology and standardization for improved performance

Product Advantages

- Lightweight, wear-resistant, high resilience components

- Aesthetically pleasing design with ground protection features

- Minimized risk of ground contamination

- Even force distribution and enhanced user experience

Application Scenarios

- Widely used in various industries and sectors

- Suitable for individual height working tasks

- Promotes economic growth in local communities

- Supports business initiatives for solving community issues

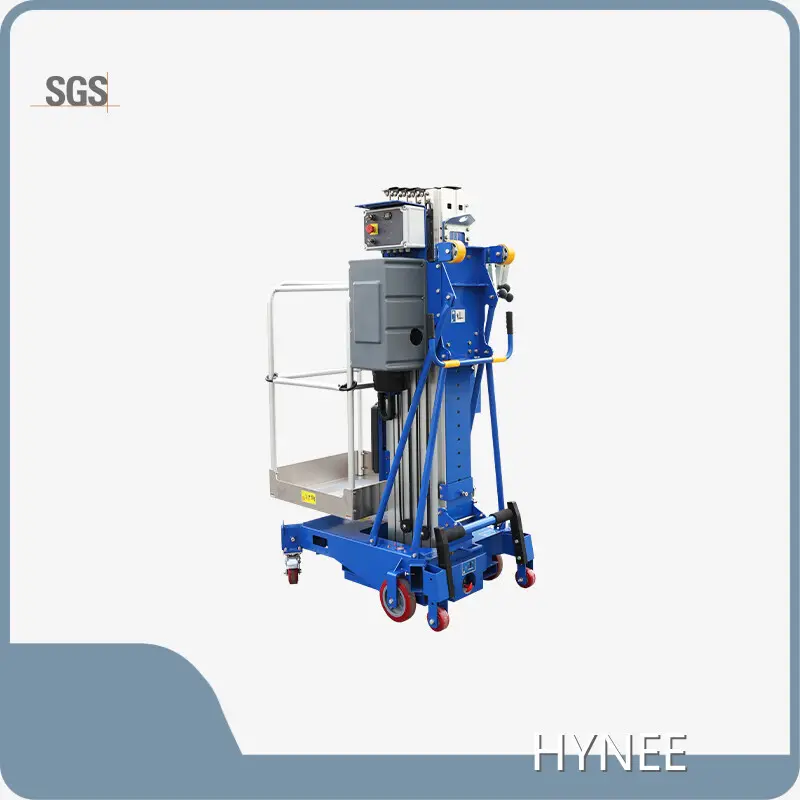

The Hyneelift GTWY1-8 push-around single man lift is a lightweight and low cost indoor AWP. Designed with a small footprint and outriggers as standard, one person can easily set up and operate the personnel lift for quick access.

Model	GTWY1-8
Platform
Max. Working Height	9.8m
Max. Platform Height	7.8m
Loading Capacity	150kg
Occupants	1
Platform Dimension	0.67m x 0.66m
Overall Dimension
Overall Height	1.99m
Overall Width	0.76m
Overall Length	1.36m
Outrigger coverage	1.7m x 1.7m
Weight
AC	370kg
DC	395kg
Power
AC	380V/220V/110V
AC Motor	0.75KW
DC	12V
DC motor	1.3KW
Charger	12V/15A

Emergency lowering function to platform control. Even when encountering power outages or other issues during individual height working, they can be easily resolved.
	The foot cup adopts a die-cast aluminum with a plastic wrapping, which is aesthetically pleasing, doesn't cause damage to the ground, and prevents detachment.
Implementing an oil collection box device to prevent oil leakage and minimize the risk of ground contamination.
	TPU casters: lightweight, wear-resistant, high resilience, and resistant to chemical corrosion.
Platform cushion structure: When entering the platform frame, it prevents the platform frame from dropping due to weight, enhancing the user experience.
	Self-leveling chain: Two chains self-level to ensure even force distribution and prevent a situation where a single chain bears all the force.
Chain inspection hole: Allows inspection of chain conditions anytime.

The Hyneelift GTWY1-9 push-around 1 man lift is a great choice for crowded and busy work places where immense mobility and maneuverability is required to get the job done. This compact, easy to use and light weighted 1 person lift will make your job tasks look pretty simple and cost effective.

Model	GTWY1-9
Platform
Max. Working Height	11.2m
Max. Platform Height	9.2m
Loading Capacity	150kg
Occupants	1
Platform Dimension	0.67m x 0.66m
Overall Dimension
Overall Height	1.99m
Overall Width	0.76m
Overall Length	1.4m
Outrigger coverage	1.8m x 1.8m
Weight
AC	390kg
DC	415kg
Power
AC	380V/220V/110V
AC Motor	0.75KW
DC	12V
DC motor	1.3KW
Charger	12V/15A

Emergency lowering function to platform control. Even when encountering power outages or other issues during individual height working, they can be easily resolved.
	The foot cup adopts a die-cast aluminum with a plastic wrapping, which is aesthetically pleasing, doesn't cause damage to the ground, and prevents detachment.
Implementing an oil collection box device to prevent oil leakage and minimize the risk of ground contamination.
	TPU casters: lightweight, wear-resistant, high resilience, and resistant to chemical corrosion.
Platform cushion structure: When entering the platform frame, it prevents the platform frame from dropping due to weight, enhancing the user experience.
	Self-leveling chain: Two chains self-level to ensure even force distribution and prevent a situation where a single chain bears all the force.
Chain inspection hole: Allows inspection of chain conditions anytime.

The Hyneelift GTWY1-10 push around single person lift is a perfect light weight electrical boom for any business. Their convenient compact size allows them to be pushed through standard doorways and congested areas quite easily. The one person lifts can also be transported on trailers or vehicles, including vans and mini trucks, and installed very quickly by one person.

Model	GTWY1-10
Platform
Max. Working Height	12.4m
Max. Platform Height	10.4m
Loading Capacity	136kg
Occupants	1
Platform Dimension	0.67m x 0.66m
Overall Dimension
Overall Height	1.99m
Overall Width	0.76m
Overall Length	1.42m
Outrigger coverage	1.9m x1.8m
Weight
AC	420kg
DC	445kg
Power
AC	380V/220V/110V
AC Motor	0.75KW
DC	12V
DC motor	1.3KW
Charger	12V/15A

Emergency lowering function to platform control. Even when encountering power outages or other issues during individual height working, they can be easily resolved.
	The foot cup adopts a die-cast aluminum with a plastic wrapping, which is aesthetically pleasing, doesn't cause damage to the ground, and prevents detachment.
Implementing an oil collection box device to prevent oil leakage and minimize the risk of ground contamination.
	TPU casters: lightweight, wear-resistant, high resilience, and resistant to chemical corrosion.
Platform cushion structure: When entering the platform frame, it prevents the platform frame from dropping due to weight, enhancing the user experience.
	Self-leveling chain: Two chains self-level to ensure even force distribution and prevent a situation where a single chain bears all the force.
Chain inspection hole: Allows inspection of chain conditions anytime.

The Hyneelift GTWY1-12 push-around 1 person lift is an easy and efficient vertical lift for indoor use. Fitted with outriggers as standard, the mast lift is also equipped with a patented telescopic Girder Lock mast for safe and stable work at height. Compact dimensions and a lightweight design easily fit the personal lift through doorways for portability.

Model	GTWY1-12
Platform
Max. Working Height	14m
Max. Platform Height	12m
Loading Capacity	120kg
Occupants	1
Platform Dimension	0.67m x 0.66m
Overall Dimension
Overall Height	2.68m
Overall Width	0.81m
Overall Length	1.46m
Outrigger coverage	2m*1.9m
Weight
AC	490kg
DC	515kg
Power
AC	380V/220V/110V
AC Motor	0.75KW
DC	12V
DC motor	1.3KW
Charger	12V/15A

Emergency lowering function to platform control. Even when encountering power outages or other issues during individual height working, they can be easily resolved.
	The foot cup adopts a die-cast aluminum with a plastic wrapping, which is aesthetically pleasing, doesn't cause damage to the ground, and prevents detachment.
Implementing an oil collection box device to prevent oil leakage and minimize the risk of ground contamination.
	TPU casters: lightweight, wear-resistant, high resilience, and resistant to chemical corrosion.
Platform cushion structure: When entering the platform frame, it prevents the platform frame from dropping due to weight, enhancing the user experience.
	Self-leveling chain: Two chains self-level to ensure even force distribution and prevent a situation where a single chain bears all the force.
Chain inspection hole: Allows inspection of chain conditions anytime.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
