Vertical Lift Platforms by HYNEE

Inquiry

Product Overview

**Product Overview**: The Vertical Lift Platforms by HYNEE come in three different models with varying lift heights and load capacities. They are designed with a structurally optimized pulley frame and stabilizer rotating joint for enhanced safety and stability.

Product Features

**Product Features**: The vertical lift platforms have a sequential lifter system to ensure each mast section is lifted in sequence, as well as a high-strength injection-molded pulley and maintenance hole for easy repairs. The stabilizer rotating joint is optimized for secure fixation and convenient rotation.

Product Value

**Product Value**: The vertical lift platforms by HYNEE offer a long service life, flexibility in different conditions, and reliable performance even in extreme conditions. The company's dedication to quality assurance ensures a high-quality product for customers.

Product Advantages

**Product Advantages**: The vertical lift platforms are equipped with dual-limit positions with rubber shock absorbers for cushioning and shock absorption. The optimized design and high-quality materials provide a sturdy and durable structure for safe lifting operations.

Application Scenarios

**Application Scenarios**: The vertical lift platforms by HYNEE are widely used in various fields for lifting and transporting materials. With a professional technical team, HYNEE can provide tailored solutions to meet specific customer requirements, making the vertical lift platforms suitable for a wide range of applications.

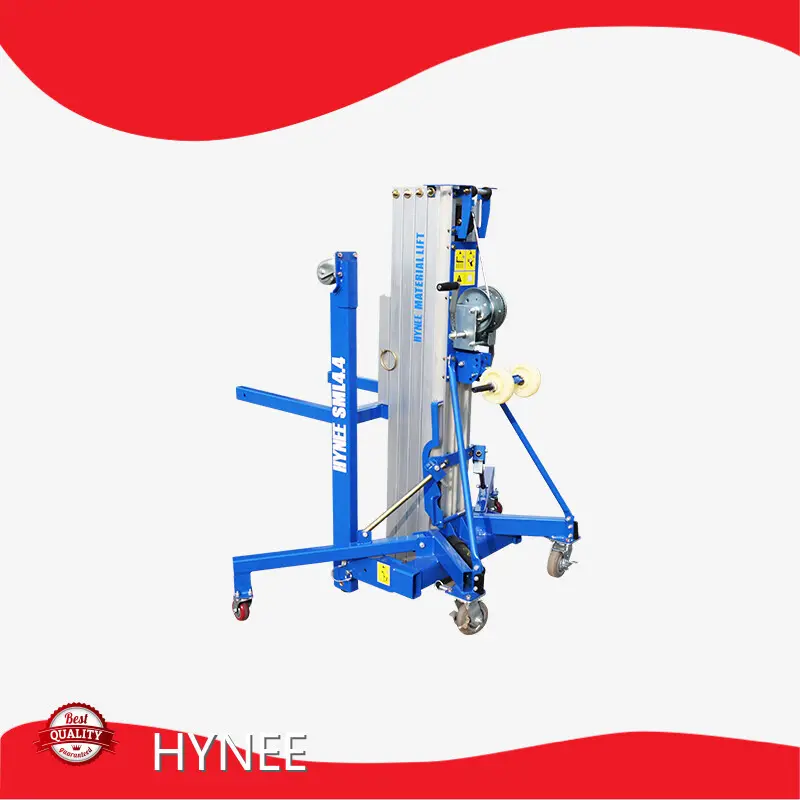

With light weight and low-cost material lifts,Hyneelift SML4.4 can handle heavy tasks.Featuring reduced mast to fit through interior door.

Dimensions	SML4.4
Lift height – forks up	4.9m
Lift height – forks down	4.4m
Stowed width	0.77m
Stabiliser width	1.63m
Stowed length	0.91m
Operating length	1.85m
Stowed height	1.6m
Fork length	0.76m
Performance
Max. load capacity (0.36m load centre)	295kg
Max. load capacity (0.61m load centre)	195kg
Max. load capacity (1.07m load centre)	80kg
Winch (high speed)	13.1cranks/m
Winch (low speed)	49.2cranks/m
Weight	138kg

	The first-section pulley frame is structurally optimized as a welded support, ensuring the bending angle and adding reinforcing ribs to strengthen the bracket.
Sequential lifter: The purpose is to ensure that each mast section is lifted in sequence, enhancing safety.
	The pulley adopts high-strength injection-molded components. The dedicated screw for the pulley, with the light rod section coordinated with the bearing, is more reasonable in structure compared to competitors. The pulley fixing block is made of No.5 zinc alloy material, providing higher strength. This is a molded part, ensuring more precise dimensions, including angles.
The mast is equipped with maintenance hole for the anti-fall mechanism, facilitating repairs.
	Stabilizer rotating joint: Optimized isolating sleeve for a secure fixation, convenient rotation, and a reliable structure.
The lower limit of the mast is a dual-limit position, and each is equipped with a rubber shock absorber, providing a noticeable cushioning and shock absorption effect without any abnormal noise.

Hyneelift SML5.5 raises standards in material lifting. Ideal for industrial and warehouse applications, a dual handle,durable winch quickly raises loads to increase productivity.

Dimensions	SML5.5
Lift height – forks up	6m
Lift height – forks down	5.5m
Stowed width	0.77m
Stabiliser width	1.63m
Stowed length	0.91m
Operating length	2.1m
Stowed height	1.6m
Fork length	0.76m
Performance
Max. load capacity (0.36m load centre)	272kg
Max. load capacity (0.61m load centre)	181kg
Max. load capacity (1.07m load centre)	80kg
Winch (high speed)	13.1cranks/m
Winch (low speed)	49.2cranks/m
Weight	156kg

	The first-section pulley frame is structurally optimized as a welded support, ensuring the bending angle and adding reinforcing ribs to strengthen the bracket.
Sequential lifter: The purpose is to ensure that each mast section is lifted in sequence, enhancing safety.
	The pulley adopts high-strength injection-molded components. The dedicated screw for the pulley, with the light rod section coordinated with the bearing, is more reasonable in structure compared to competitors. The pulley fixing block is made of No.5 zinc alloy material, providing higher strength. This is a molded part, ensuring more precise dimensions, including angles.
The mast is equipped with maintenance hole for the anti-fall mechanism, facilitating repairs.
	Stabilizer rotating joint: Optimized isolating sleeve for a secure fixation, convenient rotation, and a reliable structure.
The lower limit of the mast is a dual-limit position, and each is equipped with a rubber shock absorber, providing a noticeable cushioning and shock absorption effect without any abnormal noise.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
