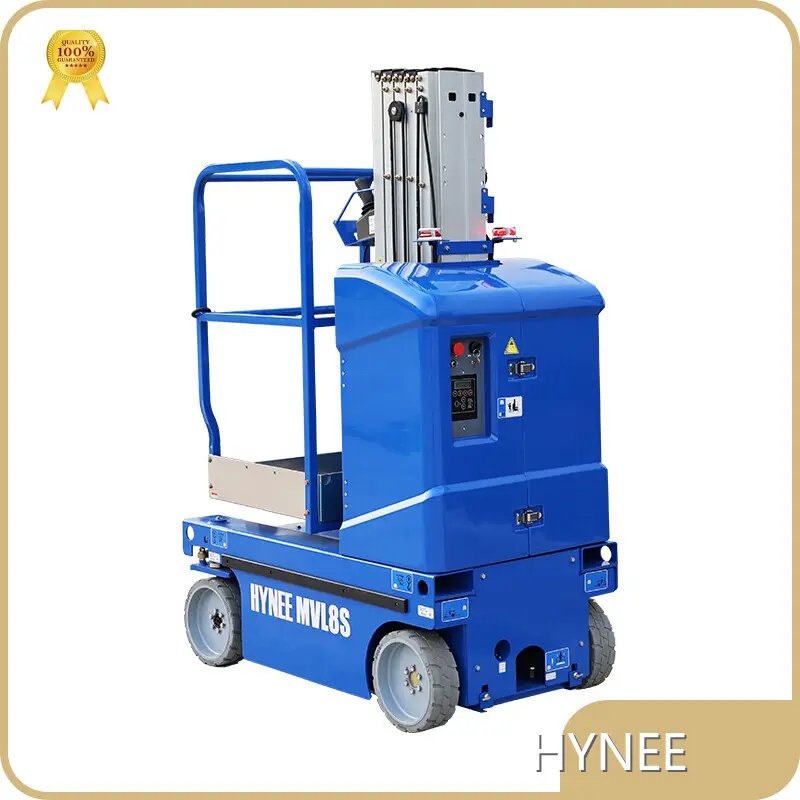

Single Person Lift Vertical Mast Lifts Wholesale - HYNEE
Product Overview
- The Single Person Lift Vertical Mast Lifts from HYNEE come in two models, MVL8S/AMWP6-1100 and MVL9.5S, with varying maximum working heights and loading capacities.
- The lifts are compact with dimensions of 1.4m in length, 0.76-0.78m in width, and 1.99m in height, making them suitable for indoor and outdoor use.
- The lifts are designed with features such as an extension platform, chain self-leveling system, non-marking tires, swing out cover, and oil collection box for ease of use and maintenance.
Product Features
- Extension Platform for improved loading capacity and stability.
- Chain Self-leveling system for equal tension on both chains.
- Non-marking tires for lightweight, wear-resistant, and corrosion-resistant properties.
- Swing out cover for easy access to inspect and maintain internal parts.
- Indoor/outdoor mode switch for enhanced safety.
Product Value
- The lifts offer efficient and flexible solutions for various industries and fields.
- They are designed with high-quality materials and advanced technology for durability and reliability.
- The lifts are versatile, with indoor/outdoor mode switch for different operating environments.
Product Advantages
- Compact and user-friendly design for easy maneuverability.
- Self-locking extension mechanism for convenient extension.
- Chain inspection hole for easy maintenance and inspection of chains.
- Oil collection box to prevent oil leakage and ensure cleanliness.
- Special design and certifications ensure quality and safety.
Application Scenarios
- The Single Person Lift Vertical Mast Lifts from HYNEE are suitable for a wide range of industries and fields, including construction, maintenance, and facilities management.
- The lifts can be used indoors and outdoors, making them ideal for various projects and applications.
- They offer efficient and safe access to elevated areas for single operators, enhancing productivity and safety.
Hyneelift AMWP7.5-1100 self-propelled one person lifts are compact, low-weight machines that increase productivity on the job thanks to their ability to fit through doorways and in most passenger elevators. Driveable single person lift can be driven through doorways with operator on board. A zero inside turning radius and full elevation drive feature also contribute to these models’ increased productivity.
| Model | MVL9.5S |
| Max. Working Height | 9.50m |
| Max. Platform Height | 7.50m |
| Loading Capacity | 125kg |
| Occupants | 1 |
| Overall Length | 1.40m |
| Overall Width | 0.76m |
| Overall Height | 1.99m |
| Platform Dimension | 0.66m×0.67m |
| Wheel Base | 1.14m |
| Turning Radius | 0 |
| Travel Speed(Stowed) | 4km/h |
| Travel Speed(Raised) | 1.1km/h |
| Up/Down Speed | 53/45sec |
| Gradeability | 25% |
| Drive Tyres | Φ305×100mm |
| Drive Motors | 2×24VDC/0.5kW |
| Lifting Motor | 24VDC/1.3kW |
| Battery | 2×12V/100Ah |
| Charger | 24V/15A |
| Weight | 1190kg |
