Personnel Lift for Sale by HYNEE

Inquiry

Product Overview

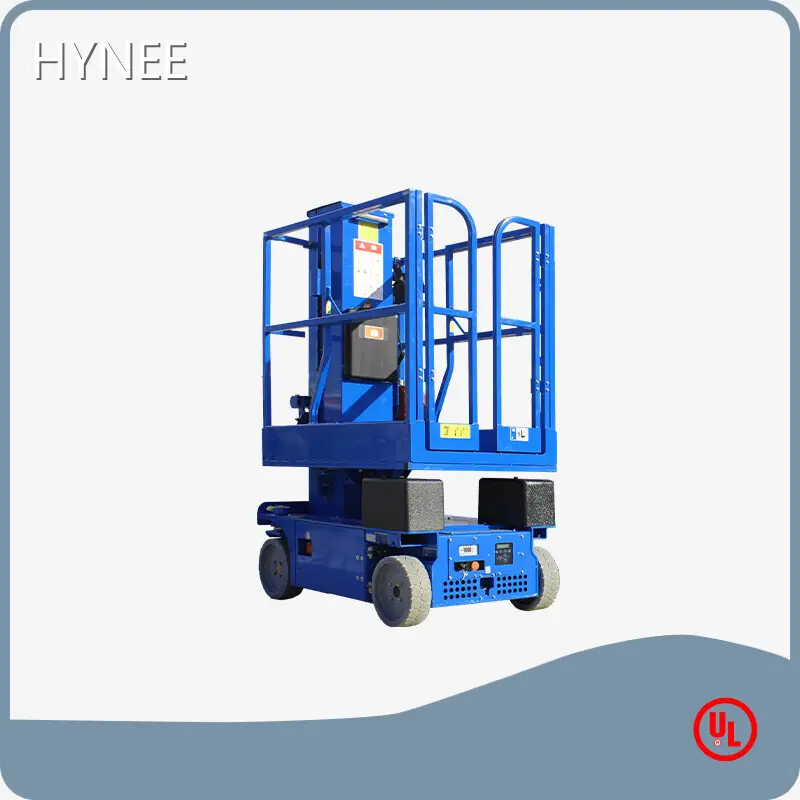

The HYNEE personnel lift for sale is a driveable vertical mast lift that is compact, lightweight, and able to fit through narrow aisles and doorways. It has a maximum working height of 5.6m and a loading capacity of 227kg.

Product Features

The lift has a zero inside turning radius, full elevation drive feature, and a smooth and efficient production process thanks to sophisticated manufacturing equipment.

Product Value

HYNEE offers a special design and appearance for their personnel lift, ensuring it can work normally even in extreme conditions. The company emphasizes the quality of their products as the key to success in the market.

Product Advantages

HYNEE is a leading supplier of personnel lift systems in China, with a strong R&D team and a commitment to environmental responsibility. They work closely with clients to provide tailored solutions to meet their specific needs.

Application Scenarios

The HYNEE personnel lift is widely used in various scenarios thanks to its compact design and versatility. The company offers customized solutions to best meet customer needs.

The Hyneelift AMWP4.8-6100 self propelled vertical boom lifts provide superior maneuverability. When operating driveable vertical mast lifts in tight work spaces, a high degree steer angle allows for superior functionality and flexibility by offering zero inside turning radius.

Model	AMWP4.8-6100
Max. Working Height	6.8m
Max. Platform Height	4.8m
Loading Capacity	227kg
Ext. Platform Capacity	114kg
Overall Length	1.36m
Overall Width	0.76m
Overall Height	1.98m
Platform Dimension	1.28m×0.70m
Ext. Platform Length	0.51m
Wheel Base	1.04m
Inner Turning Radius	0m
Outer Turning Radius	1.4m
Travel Speed(Stowed)	4km/h
Travel Speed(Raised)	1.1km/h
Up/Down Speed	41.5/42sec
Gradeability	25%
Drive Tyres	Φ305×100mm
Drive Motors	2×24VDC/0.5kW
Lifting Motor	24VDC/1.2kW
Battery	2×12V/100Ah
Charger	24V/15A
Weight	980kg

The Hyneelift AMWP6-6100 electric vertical mast lift has full electric drive, and a wind rating. The AMWP6-6100 is driveable at full working height and has 25% gradeability and torque with unmatched consistency. This machine offers fully proportional lift controls and drive, and it requires minimal maintenance on wheel motors.

Model	AMWP6-6100
Max. Working Height	8m
Max. Platform Height	6m
Loading Capacity	159kg
Ext. Platform Capacity	114kg
Overall Length	1.36m
Overall Width	0.81m
Overall Height	1.98m
Platform Dimension	1.28m×0.70m
Ext. Platform Length	0.51m
Wheel Base	1.04m
Inner Turning Radius	0m
Outer Turning Radius	1.4m
Travel Speed(Stowed)	4km/h
Travel Speed(Raised)	1.1km/h
Up/Down Speed	52/53sec
Gradeability	25%
Drive Tyres	Φ305×100mm
Drive Motors	2×24VDC/0.5kW
Lifting Motor	24VDC/1.2kW
Battery	2×12V/100Ah
Charger	24V/15A
Weight	1060kg

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
