Product Overview
The Material Lifting Equipment by HYNEE is designed using leading edge technology and meets international standards for quality assurance.
Product Features
The MVL9.5D and MVL11D models have a maximum working height of 9.50m and 11.00m, with a loading capacity of 200kg and 150kg respectively. They are equipped with drive motors, lifting motor, battery, and charger.
Product Value
HYNEE's material lifting equipment provides high quality and reliable performance, ensuring efficient and safe material lifting operations.
Product Advantages
The equipment has a compact design with precise control systems, enabling smooth and precise lifting operations. It also offers high gradeability and travel speeds for enhanced productivity.
Application Scenarios
The material lifting equipment is suitable for various industries and applications where vertical lifting of materials or personnel is required, such as construction sites, warehouses, and maintenance projects.

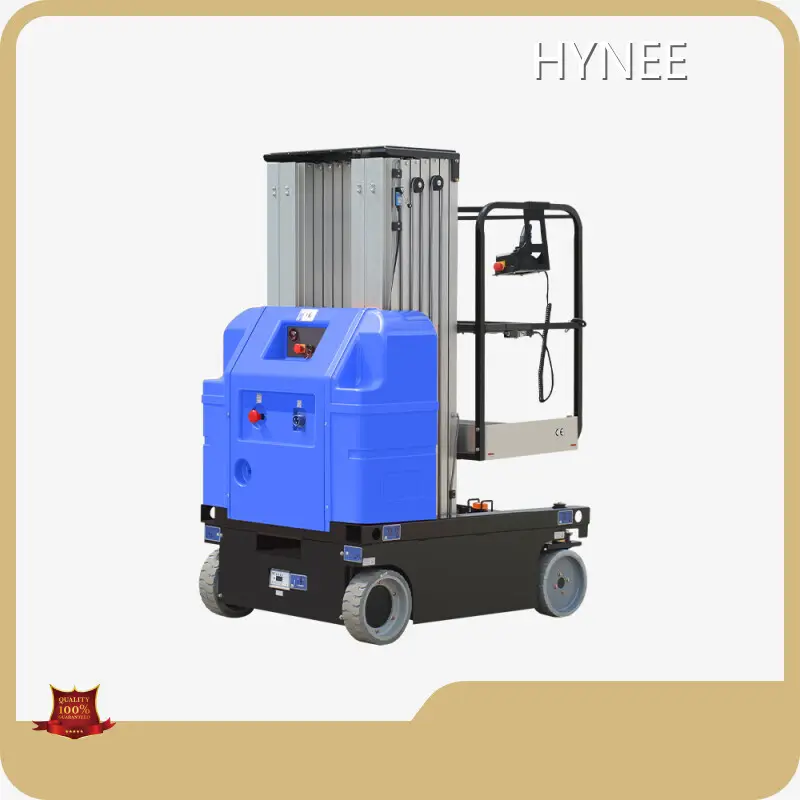

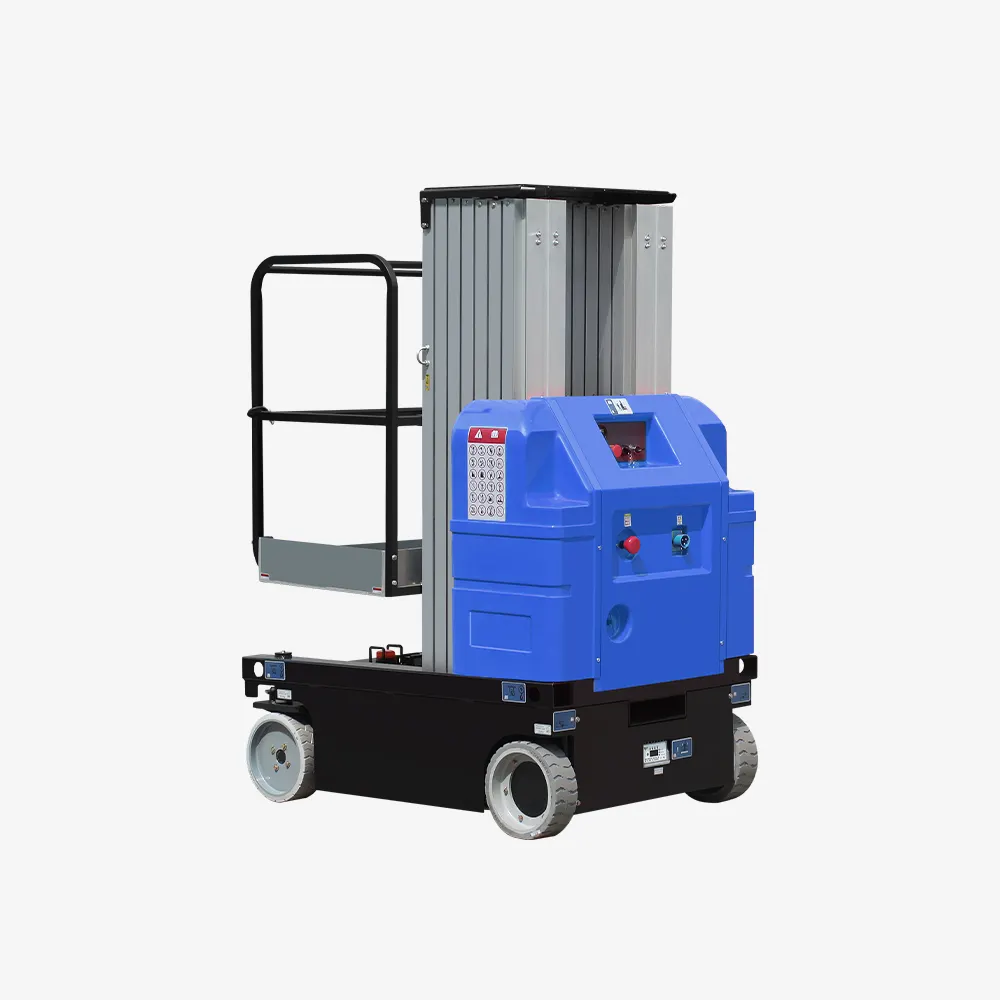

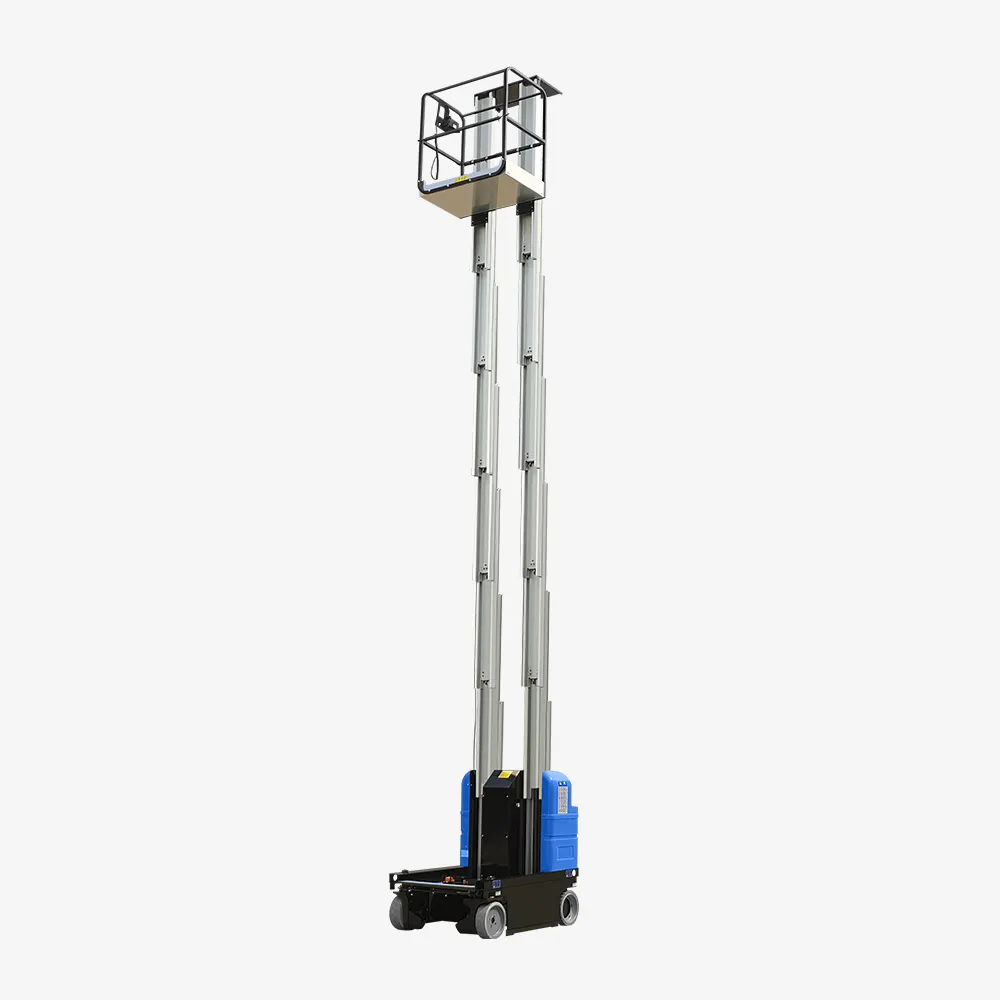

Hyneelift driveable dual mast vertical lift has the characteristics of small ,compact size and convenient movement. Electric double mast man lift is rapid lifting and self-propelling functions maximize the work efficiency and is widely used in shopping malls, supermarkets, warehouses, cleaning and other fields.
Model | AMWP9-2100 |
Max. Working Height | 11.00m |
Max. Platform Height | 9.00m |
Loading Capacity | 150kg |
Occupants | 1 |
Overall Length | 1.46m |
Overall Width | 1.01m |
Overall Height | 1.99m |
Platform Dimension | 1.00m×0.65m |
Wheel Base | 1.14m |
Turning Radius | 0 |
Travel Speed(Stowed) | 4km/h |
Travel Speed(Raised) | 1.1km/h |
Up/Down Speed | 56/49sec |
Gradeability | 25% |
Drive Tyres | Φ305×100mm |
Drive Motors | 2×24VDC/0.5kW |
Lifting Motor | 24VDC/1.3kW |
Battery | 2×12V/100Ah |
Charger | 24V/15A |
Weight | 1345kg |
