Product Overview
- HYNEE efficient lifting platform is designed by a top-class R&D team.
- Statistical quality control technology is adopted in the production process.
- Widely used in the market with many economic benefits.
Product Features
- Model options with different working heights, platform dimensions, and loading capacities.
- Travel speed options for stowed and raised platforms.
- Gradeability of 25% for easy incline navigation.
Product Value
- High-quality production according to national standards.
- Wide application in various fields.
- Personalized solutions according to customer needs.
Product Advantages
- Advanced production facilities for close monitoring and flexible delivery schedules.
- Focus on innovation for growth and transformation.
- Professional management team and customer service department.
Application Scenarios
- Used in industries requiring efficient and safe lifting platforms.
- Suitable for tasks involving height elevation and mobility.
- Can be used in various work environments such as warehouses, construction sites, and maintenance operations.

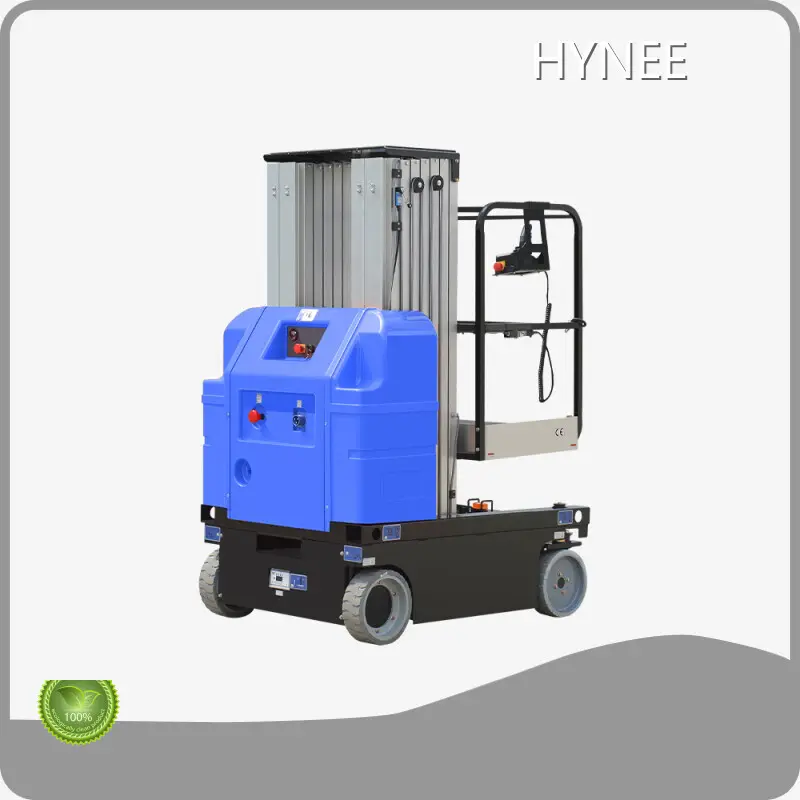

Hyneelift driveable dual mast vertical lift has the characteristics of small ,compact size and convenient movement. Electric double mast man lift is rapid lifting and self-propelling functions maximize the work efficiency and is widely used in shopping malls, supermarkets, warehouses, cleaning and other fields.
Model | AMWP9-2100 |
Max. Working Height | 11.00m |
Max. Platform Height | 9.00m |
Loading Capacity | 150kg |
Occupants | 1 |
Overall Length | 1.46m |
Overall Width | 1.01m |
Overall Height | 1.99m |
Platform Dimension | 1.00m×0.65m |
Wheel Base | 1.14m |
Turning Radius | 0 |
Travel Speed(Stowed) | 4km/h |
Travel Speed(Raised) | 1.1km/h |
Up/Down Speed | 56/49sec |
Gradeability | 25% |
Drive Tyres | Φ305×100mm |
Drive Motors | 2×24VDC/0.5kW |
Lifting Motor | 24VDC/1.3kW |
Battery | 2×12V/100Ah |
Charger | 24V/15A |
Weight | 1345kg |
