Product Overview
The Custom Crawler Mast Lift Company specializes in producing GTWY1 SINGLE MAN PUSH-AROUND VERTICAL LIFTS, with various models available to suit different working heights and loading capacities.
Product Features
- Emergency lowering function for platform control
- Die-cast aluminum foot cup with plastic wrapping for aesthetic appeal and ground protection
- Oil collection box device to prevent oil leakage and ground contamination
- TPU casters that are lightweight, wear-resistant, and chemical corrosion-resistant
- Self-leveling chain and chain inspection hole for even force distribution and maintenance
Product Value
The company focuses on quality control and professional customer service, ensuring consistent and reliable products that meet customer needs and satisfaction. The production technology has been enhanced to promote standardization and efficiency.
Product Advantages
- Enhanced user experience with platform cushion structure
- Improved safety with self-leveling chain and chain inspection hole
- Lightweight and durable with TPU casters
- Aesthetic appeal and ground protection with die-cast aluminum foot cup
- Oil leakage prevention and ground contamination minimization with oil collection box device
Application Scenarios
The Custom Crawler Mast Lift Company's products can be used in various fields, providing solutions for vertical lifting needs in different industries. The company's efficient production process and commitment to sustainable resource management make their products suitable for a wide range of applications.

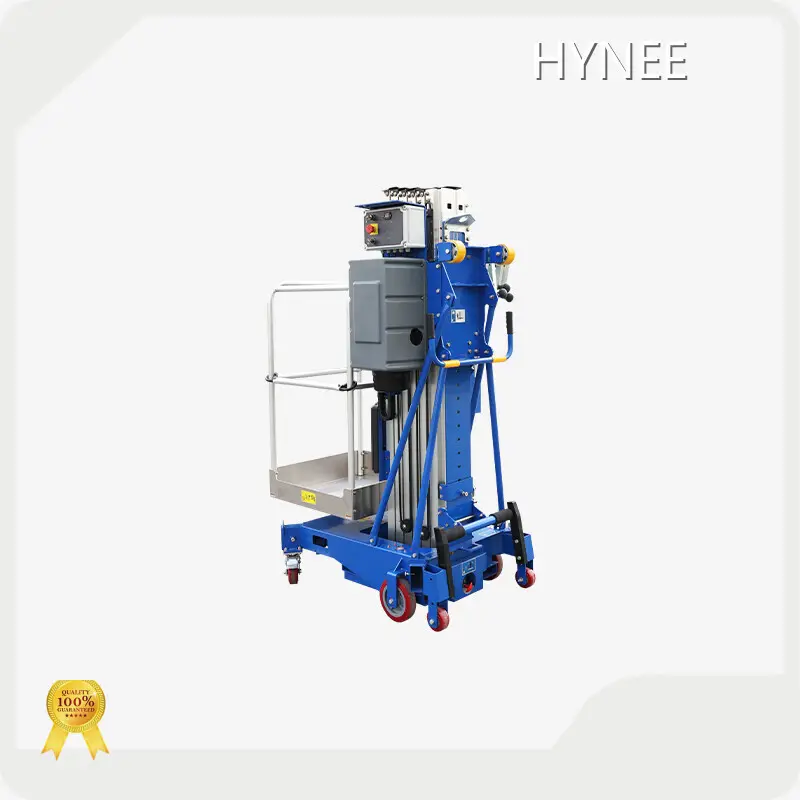

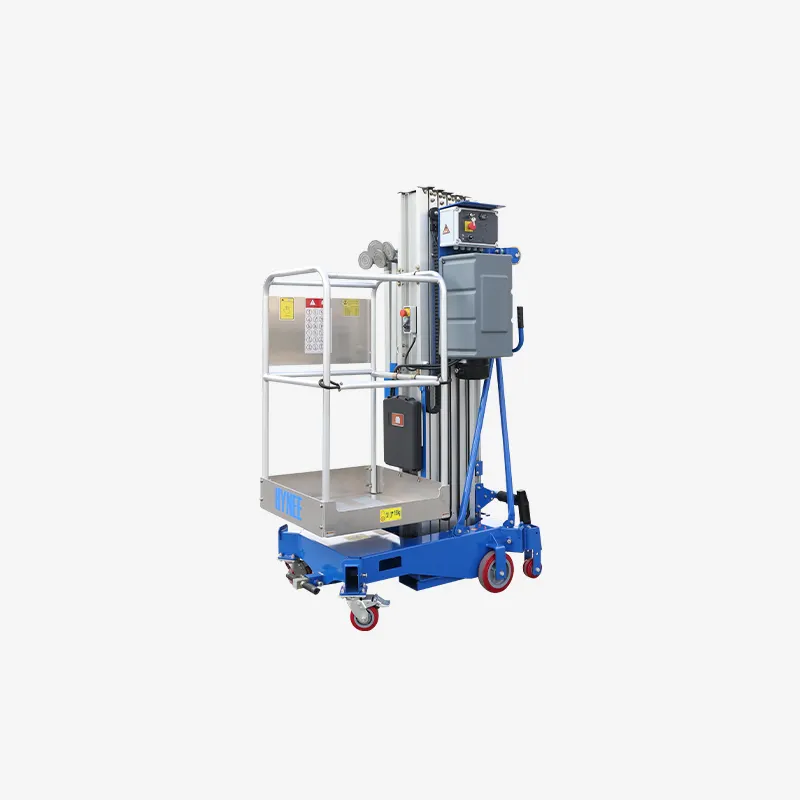

The Hyneelift GTWY1-8 push-around single man lift is a lightweight and low cost indoor AWP. Designed with a small footprint and outriggers as standard, one person can easily set up and operate the personnel lift for quick access.
Model | GTWY1-8 |
Platform | |
Max. Working Height | 9.8m |
Max. Platform Height | 7.8m |
Loading Capacity | 150kg |
Occupants | 1 |
Platform Dimension | 0.67m x 0.66m |
Overall Dimension | |
Overall Height | 1.99m |
Overall Width | 0.76m |
Overall Length | 1.36m |
Outrigger coverage | 1.7m x 1.7m |
Weight | |
AC | 370kg |
DC | 395kg |
Power | |
AC | 380V/220V/110V |
AC Motor | 0.75KW |
DC | 12V |
DC motor | 1.3KW |
Charger | 12V/15A |
Emergency lowering function to platform control. Even when encountering power outages or other issues during individual height working, they can be easily resolved. | |
The foot cup adopts a die-cast aluminum with a plastic wrapping, which is aesthetically pleasing, doesn't cause damage to the ground, and prevents detachment. | |
Implementing an oil collection box device to prevent oil leakage and minimize the risk of ground contamination. | |
TPU casters: lightweight, wear-resistant, high resilience, and resistant to chemical corrosion. | |
Platform cushion structure: When entering the platform frame, it prevents the platform frame from dropping due to weight, enhancing the user experience. | |
Self-leveling chain: Two chains self-level to ensure even force distribution and prevent a situation where a single chain bears all the force. | |
Chain inspection hole: Allows inspection of chain conditions anytime. |
The Hyneelift GTWY1-9 push-around 1 man lift is a great choice for crowded and busy work places where immense mobility and maneuverability is required to get the job done. This compact, easy to use and light weighted 1 person lift will make your job tasks look pretty simple and cost effective.
Model | GTWY1-9 |
Platform | |
Max. Working Height | 11.2m |
Max. Platform Height | 9.2m |
Loading Capacity | 150kg |
Occupants | 1 |
Platform Dimension | 0.67m x 0.66m |
Overall Dimension | |
Overall Height | 1.99m |
Overall Width | 0.76m |
Overall Length | 1.4m |
Outrigger coverage | 1.8m x 1.8m |
Weight | |
AC | 390kg |
DC | 415kg |
Power | |
AC | 380V/220V/110V |
AC Motor | 0.75KW |
DC | 12V |
DC motor | 1.3KW |
Charger | 12V/15A |
Emergency lowering function to platform control. Even when encountering power outages or other issues during individual height working, they can be easily resolved. | |
The foot cup adopts a die-cast aluminum with a plastic wrapping, which is aesthetically pleasing, doesn't cause damage to the ground, and prevents detachment. | |
Implementing an oil collection box device to prevent oil leakage and minimize the risk of ground contamination. | |
TPU casters: lightweight, wear-resistant, high resilience, and resistant to chemical corrosion. | |
Platform cushion structure: When entering the platform frame, it prevents the platform frame from dropping due to weight, enhancing the user experience. | |
Self-leveling chain: Two chains self-level to ensure even force distribution and prevent a situation where a single chain bears all the force. | |
Chain inspection hole: Allows inspection of chain conditions anytime. |
The Hyneelift GTWY1-10 push around single person lift is a perfect light weight electrical boom for any business. Their convenient compact size allows them to be pushed through standard doorways and congested areas quite easily. The one person lifts can also be transported on trailers or vehicles, including vans and mini trucks, and installed very quickly by one person.
Model | GTWY1-10 |
Platform | |
Max. Working Height | 12.4m |
Max. Platform Height | 10.4m |
Loading Capacity | 136kg |
Occupants | 1 |
Platform Dimension | 0.67m x 0.66m |
Overall Dimension | |
Overall Height | 1.99m |
Overall Width | 0.76m |
Overall Length | 1.42m |
Outrigger coverage | 1.9m x1.8m |
Weight | |
AC | 420kg |
DC | 445kg |
Power | |
AC | 380V/220V/110V |
AC Motor | 0.75KW |
DC | 12V |
DC motor | 1.3KW |
Charger | 12V/15A |
Emergency lowering function to platform control. Even when encountering power outages or other issues during individual height working, they can be easily resolved. | |
The foot cup adopts a die-cast aluminum with a plastic wrapping, which is aesthetically pleasing, doesn't cause damage to the ground, and prevents detachment. | |
Implementing an oil collection box device to prevent oil leakage and minimize the risk of ground contamination. | |
TPU casters: lightweight, wear-resistant, high resilience, and resistant to chemical corrosion. | |
Platform cushion structure: When entering the platform frame, it prevents the platform frame from dropping due to weight, enhancing the user experience. | |
Self-leveling chain: Two chains self-level to ensure even force distribution and prevent a situation where a single chain bears all the force. | |
Chain inspection hole: Allows inspection of chain conditions anytime. |
The Hyneelift GTWY1-12 push-around 1 person lift is an easy and efficient vertical lift for indoor use. Fitted with outriggers as standard, the mast lift is also equipped with a patented telescopic Girder Lock mast for safe and stable work at height. Compact dimensions and a lightweight design easily fit the personal lift through doorways for portability.
Model | GTWY1-12 |
Platform | |
Max. Working Height | 14m |
Max. Platform Height | 12m |
Loading Capacity | 120kg |
Occupants | 1 |
Platform Dimension | 0.67m x 0.66m |
Overall Dimension | |
Overall Height | 2.68m |
Overall Width | 0.81m |
Overall Length | 1.46m |
Outrigger coverage | 2m*1.9m |
Weight | |
AC | 490kg |
DC | 515kg |
Power | |
AC | 380V/220V/110V |
AC Motor | 0.75KW |
DC | 12V |
DC motor | 1.3KW |
Charger | 12V/15A |
Emergency lowering function to platform control. Even when encountering power outages or other issues during individual height working, they can be easily resolved. | |
The foot cup adopts a die-cast aluminum with a plastic wrapping, which is aesthetically pleasing, doesn't cause damage to the ground, and prevents detachment. | |
Implementing an oil collection box device to prevent oil leakage and minimize the risk of ground contamination. | |
TPU casters: lightweight, wear-resistant, high resilience, and resistant to chemical corrosion. | |
Platform cushion structure: When entering the platform frame, it prevents the platform frame from dropping due to weight, enhancing the user experience. | |
Self-leveling chain: Two chains self-level to ensure even force distribution and prevent a situation where a single chain bears all the force. | |
Chain inspection hole: Allows inspection of chain conditions anytime. |
