Custom Aerial Working Platforms Price List
Product Overview
- This product is the "Custom Aerial Working Platforms Price List" offered by HYNEE, a company known for its matchless workmanship and quality certifications.
Product Features
- The aerial working platforms come in various models with different lift heights, stowed dimensions, load capacities, and weights.
- The first-section pulley frame is structurally optimized for safety and strength.
- The pulley components are high-strength and molded for precise dimensions.
- The mast is equipped with a maintenance hole for the anti-fall mechanism, making repairs easier.
- The stabilizer rotating joint is optimized for secure fixation and reliable structure.
Product Value
- The aerial working platforms are designed to meet various lifting needs with high load capacities and reliable construction features.
Product Advantages
- The pulley frame and components are optimized for safety and strength, enhancing the overall performance of the aerial working platforms.
Application Scenarios
- These custom aerial working platforms are suitable for industrial material lifting applications where safety, reliability, and strength are essential.
|
Dimensions |
AML3 |
|
Lift height – forks up |
3.49m |
|
Lift height – forks down |
2.97m |
|
Stowed width |
0.8m |
|
Stabiliser width |
1.85m |
|
Stowed length |
0.74m |
|
Operating length |
1.51m |
|
Stowed height |
1.99m |
|
Fork length |
0.75m |
|
Performance |
|
|
Max. load capacity(0.36m load centre) |
454kg |
|
Max. load capacity(0.61m load centre) |
454kg |
|
Max. load capacity(1.07m load centre) |
181kg |
|
Winch (high speed) |
13.1cranks/m |
|
Winch (low speed) |
49.2cranks/m |
|
Weight |
148kg |
 | The first-section pulley frame is structurally optimized as a welded support, ensuring the bending angle and adding reinforcing ribs to strengthen the bracket. |
| Sequential lifter: The purpose is to ensure that each mast section is lifted in sequence, enhancing safety. |  |
 | The pulley adopts high-strength injection-molded components. The dedicated screw for the pulley, with the light rod section coordinated with the bearing, is more reasonable in structure compared to competitors. The pulley fixing block is made of No.5 zinc alloy material, providing higher strength. This is a molded part, ensuring more precise dimensions, including angles. |
| The mast is equipped with maintenance hole for the anti-fall mechanism, facilitating repairs. |  |
 | Stabilizer rotating joint: Optimized isolating sleeve for a secure fixation, convenient rotation, and a reliable structure. |
| The lower limit of the mast is a dual-limit position, and each is equipped with a rubber shock absorber, providing a noticeable cushioning and shock absorption effect without any abnormal noise. |  |

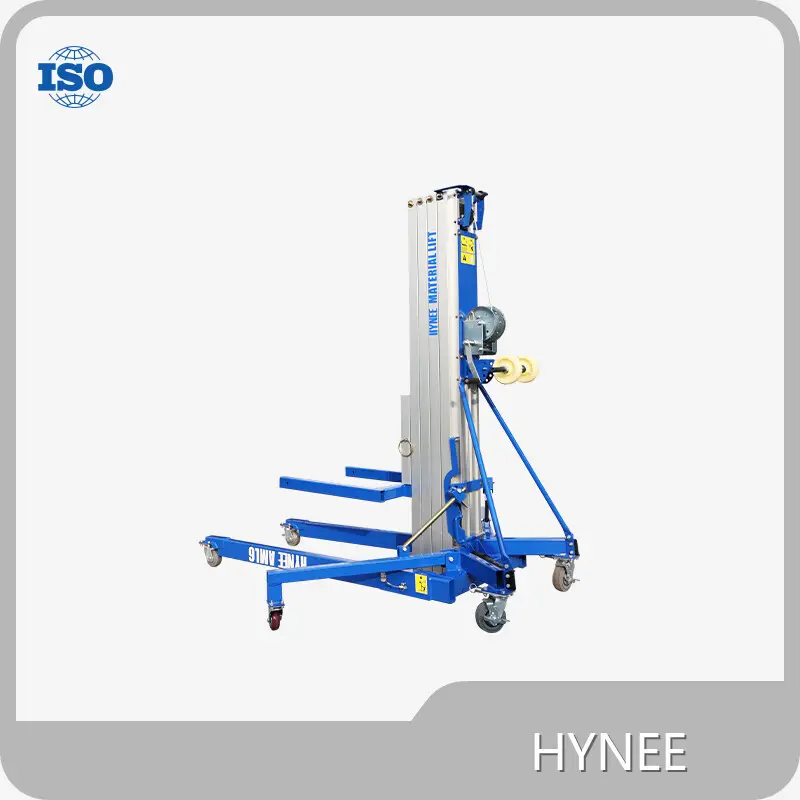

Hyneelift AML6 manual material lift is readily resilient for every job.Capable of handling industrial -strength tasks.It is ideal for wide loads as well as narrow doorways,and can be loaded easily into a service van.
| Dimensions | AML6 |
| Lift height – forks up | 6.46m |
| Lift height – forks down | 5.94m |
| Stowed width | 0.8m |
| Stabiliser width | 1.85m |
| Stowed length | 0.74m |
| Operating length | 2.08m |
| Stowed height | 1.99m |
| Fork length | 0.76m |
| Performance | |
| Max. load capacity (0.36m load centre) | 363kg |
| Max. load capacity (0.61m load centre) | 295kg |
| Max. load capacity (1.07m load centre) | 159kg |
| Winch (high speed) | 13.1cranks/m |
| Winch (low speed) | 49.2cranks/m |
| Weight | 184kg |
| The first-section pulley frame is structurally optimized as a welded support, ensuring the bending angle and adding reinforcing ribs to strengthen the bracket. |
| Sequential lifter: The purpose is to ensure that each mast section is lifted in sequence, enhancing safety. | |
| The pulley adopts high-strength injection-molded components. The dedicated screw for the pulley, with the light rod section coordinated with the bearing, is more reasonable in structure compared to competitors. The pulley fixing block is made of No.5 zinc alloy material, providing higher strength. This is a molded part, ensuring more precise dimensions, including angles. |
| The mast is equipped with maintenance hole for the anti-fall mechanism, facilitating repairs. | |
| Stabilizer rotating joint: Optimized isolating sleeve for a secure fixation, convenient rotation, and a reliable structure. |
| The lower limit of the mast is a dual-limit position, and each is equipped with a rubber shock absorber, providing a noticeable cushioning and shock absorption effect without any abnormal noise. | |
Hyneelift AML7.5 is dependable rugged.This high specification lift offers lifting heavy loads to help increase productivity and value to fit specific worksite needs. The industrial material lift is narrow enough to maneuver through doorways.Robust to handle the demands of rental industry.
| Dimensions | AML7.5 |
| Lift height – forks up | 7.94m |
| Lift height – forks down | 7.42m |
| Stowed width | 0.8m |
| Stabiliser width | 1.85m |
| Stowed length | 0.79m |
| Operating length | 2.08m |
| Stowed height | 1.99m |
| Fork length | 0.76m |
| Performance | |
| Max. load capacity (0.36m load centre) | 295kg |
| Max. load capacity (0.61m load centre) | 204kg |
| Max. load capacity (1.07m load centre) | 113kg |
| Winch (high speed) | 13.1cranks/m |
| Winch (low speed) | 49.2cranks/m |
| Weight | 204kg |
| The first-section pulley frame is structurally optimized as a welded support, ensuring the bending angle and adding reinforcing ribs to strengthen the bracket. |
| Sequential lifter: The purpose is to ensure that each mast section is lifted in sequence, enhancing safety. | |
| The pulley adopts high-strength injection-molded components. The dedicated screw for the pulley, with the light rod section coordinated with the bearing, is more reasonable in structure compared to competitors. The pulley fixing block is made of No.5 zinc alloy material, providing higher strength. This is a molded part, ensuring more precise dimensions, including angles. |
| The mast is equipped with maintenance hole for the anti-fall mechanism, facilitating repairs. | |
| Stabilizer rotating joint: Optimized isolating sleeve for a secure fixation, convenient rotation, and a reliable structure. |
| The lower limit of the mast is a dual-limit position, and each is equipped with a rubber shock absorber, providing a noticeable cushioning and shock absorption effect without any abnormal noise. | |
