Product Overview

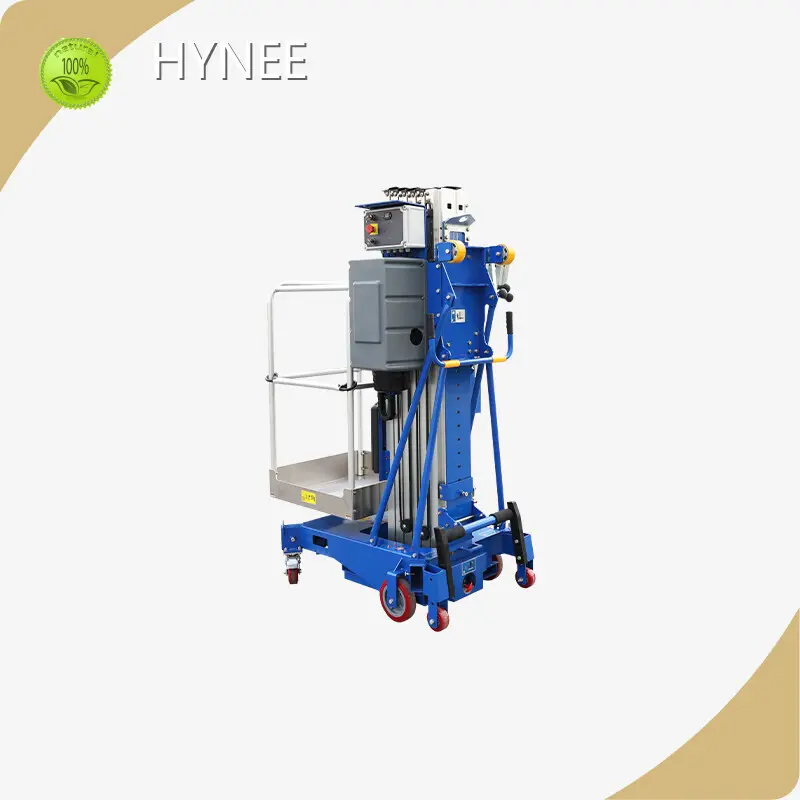

- The GTWY1 ONE MAN PUSH AROUND LIFT is designed for one person to easily access heights for various tasks.
Product Features
- Emergency lowering function, die-cast aluminum foot cup, oil collection box, TPU casters, platform cushion structure, self-leveling chain, chain inspection hole, and improved production technology.
Product Value
- The product provides safe and efficient access to heights for maintenance, construction, and other tasks, enhancing productivity and safety.
Product Advantages
- Aesthetic design, damage prevention to the ground, minimal risk of oil leakage, lightweight and durable casters, enhanced user experience, even force distribution, easy chain inspection, and standardized production.
Application Scenarios
- The product can be used in various industries such as maintenance, construction, installations, and repairs where safe and efficient access to heights is needed for one person.
The Hyneelift GTWY1-8 push-around single man lift is a lightweight and low cost indoor AWP. Designed with a small footprint and outriggers as standard, one person can easily set up and operate the personnel lift for quick access.
Model | GTWY1-8 |
Platform | |
Max. Working Height | 9.8m |
Max. Platform Height | 7.8m |
Loading Capacity | 150kg |
Occupants | 1 |
Platform Dimension | 0.67m x 0.66m |
Overall Dimension | |
Overall Height | 1.99m |
Overall Width | 0.76m |
Overall Length | 1.36m |
Outrigger coverage | 1.7m x 1.7m |
Weight | |
AC | 370kg |
DC | 395kg |
Power | |
AC | 380V/220V/110V |
AC Motor | 0.75KW |
DC | 12V |
DC motor | 1.3KW |
Charger | 12V/15A |
Emergency lowering function to platform control. Even when encountering power outages or other issues during individual height working, they can be easily resolved. | |
The foot cup adopts a die-cast aluminum with a plastic wrapping, which is aesthetically pleasing, doesn't cause damage to the ground, and prevents detachment. | |
Implementing an oil collection box device to prevent oil leakage and minimize the risk of ground contamination. | |
TPU casters: lightweight, wear-resistant, high resilience, and resistant to chemical corrosion. | |
Platform cushion structure: When entering the platform frame, it prevents the platform frame from dropping due to weight, enhancing the user experience. | |
Self-leveling chain: Two chains self-level to ensure even force distribution and prevent a situation where a single chain bears all the force. | |
Chain inspection hole: Allows inspection of chain conditions anytime. |
The Hyneelift GTWY1-9 push-around 1 man lift is a great choice for crowded and busy work places where immense mobility and maneuverability is required to get the job done. This compact, easy to use and light weighted 1 person lift will make your job tasks look pretty simple and cost effective.
Model | GTWY1-9 |
Platform | |
Max. Working Height | 11.2m |
Max. Platform Height | 9.2m |
Loading Capacity | 150kg |
Occupants | 1 |
Platform Dimension | 0.67m x 0.66m |
Overall Dimension | |
Overall Height | 1.99m |
Overall Width | 0.76m |
Overall Length | 1.4m |
Outrigger coverage | 1.8m x 1.8m |
Weight | |
AC | 390kg |
DC | 415kg |
Power | |
AC | 380V/220V/110V |
AC Motor | 0.75KW |
DC | 12V |
DC motor | 1.3KW |
Charger | 12V/15A |
Emergency lowering function to platform control. Even when encountering power outages or other issues during individual height working, they can be easily resolved. | |
The foot cup adopts a die-cast aluminum with a plastic wrapping, which is aesthetically pleasing, doesn't cause damage to the ground, and prevents detachment. | |
Implementing an oil collection box device to prevent oil leakage and minimize the risk of ground contamination. | |
TPU casters: lightweight, wear-resistant, high resilience, and resistant to chemical corrosion. | |
Platform cushion structure: When entering the platform frame, it prevents the platform frame from dropping due to weight, enhancing the user experience. | |
Self-leveling chain: Two chains self-level to ensure even force distribution and prevent a situation where a single chain bears all the force. | |
Chain inspection hole: Allows inspection of chain conditions anytime. |
The Hyneelift GTWY1-10 push around single person lift is a perfect light weight electrical boom for any business. Their convenient compact size allows them to be pushed through standard doorways and congested areas quite easily. The one person lifts can also be transported on trailers or vehicles, including vans and mini trucks, and installed very quickly by one person.
Model | GTWY1-10 |
Platform | |
Max. Working Height | 12.4m |
Max. Platform Height | 10.4m |
Loading Capacity | 136kg |
Occupants | 1 |
Platform Dimension | 0.67m x 0.66m |
Overall Dimension | |
Overall Height | 1.99m |
Overall Width | 0.76m |
Overall Length | 1.42m |
Outrigger coverage | 1.9m x1.8m |
Weight | |
AC | 420kg |
DC | 445kg |
Power | |
AC | 380V/220V/110V |
AC Motor | 0.75KW |
DC | 12V |
DC motor | 1.3KW |
Charger | 12V/15A |
Emergency lowering function to platform control. Even when encountering power outages or other issues during individual height working, they can be easily resolved. | |
The foot cup adopts a die-cast aluminum with a plastic wrapping, which is aesthetically pleasing, doesn't cause damage to the ground, and prevents detachment. | |
Implementing an oil collection box device to prevent oil leakage and minimize the risk of ground contamination. | |
TPU casters: lightweight, wear-resistant, high resilience, and resistant to chemical corrosion. | |
Platform cushion structure: When entering the platform frame, it prevents the platform frame from dropping due to weight, enhancing the user experience. | |
Self-leveling chain: Two chains self-level to ensure even force distribution and prevent a situation where a single chain bears all the force. | |
Chain inspection hole: Allows inspection of chain conditions anytime. |
The Hyneelift GTWY1-12 push-around 1 person lift is an easy and efficient vertical lift for indoor use. Fitted with outriggers as standard, the mast lift is also equipped with a patented telescopic Girder Lock mast for safe and stable work at height. Compact dimensions and a lightweight design easily fit the personal lift through doorways for portability.
Model | GTWY1-12 |
Platform | |
Max. Working Height | 14m |
Max. Platform Height | 12m |
Loading Capacity | 120kg |
Occupants | 1 |
Platform Dimension | 0.67m x 0.66m |
Overall Dimension | |
Overall Height | 2.68m |
Overall Width | 0.81m |
Overall Length | 1.46m |
Outrigger coverage | 2m*1.9m |
Weight | |
AC | 490kg |
DC | 515kg |
Power | |
AC | 380V/220V/110V |
AC Motor | 0.75KW |
DC | 12V |
DC motor | 1.3KW |
Charger | 12V/15A |
Emergency lowering function to platform control. Even when encountering power outages or other issues during individual height working, they can be easily resolved. | |
The foot cup adopts a die-cast aluminum with a plastic wrapping, which is aesthetically pleasing, doesn't cause damage to the ground, and prevents detachment. | |
Implementing an oil collection box device to prevent oil leakage and minimize the risk of ground contamination. | |
TPU casters: lightweight, wear-resistant, high resilience, and resistant to chemical corrosion. | |
Platform cushion structure: When entering the platform frame, it prevents the platform frame from dropping due to weight, enhancing the user experience. | |
Self-leveling chain: Two chains self-level to ensure even force distribution and prevent a situation where a single chain bears all the force. | |
Chain inspection hole: Allows inspection of chain conditions anytime. |
